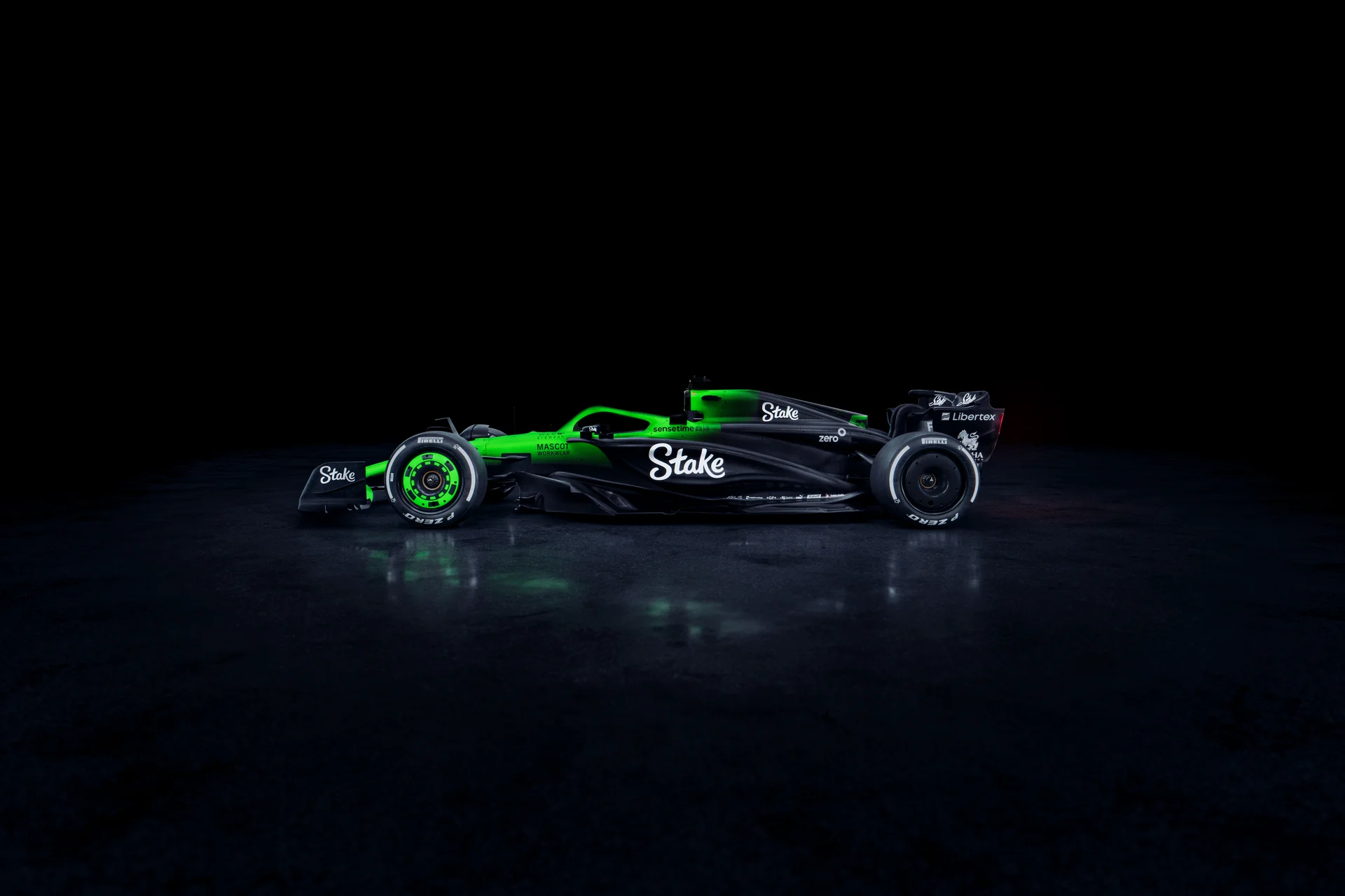

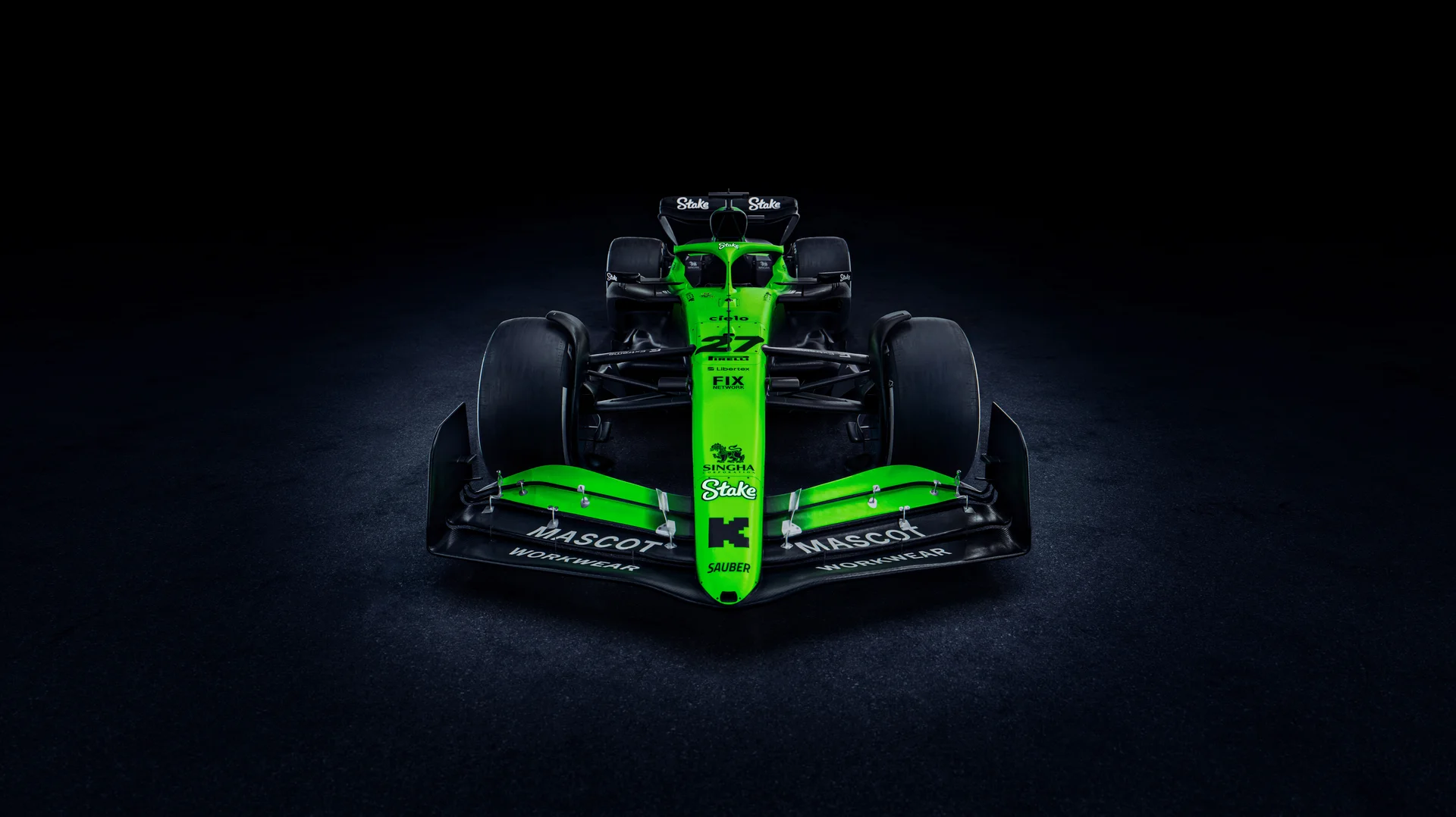

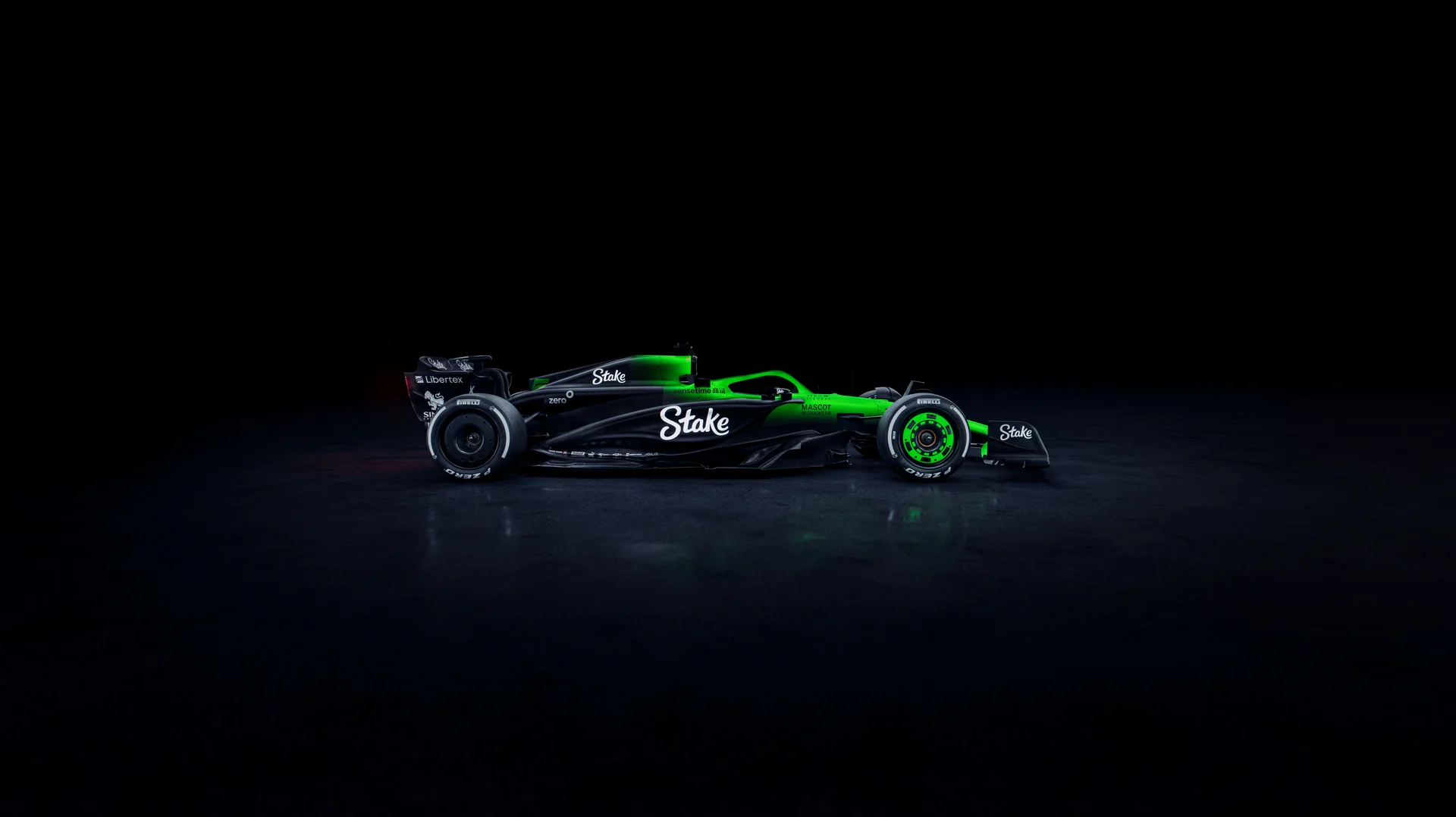

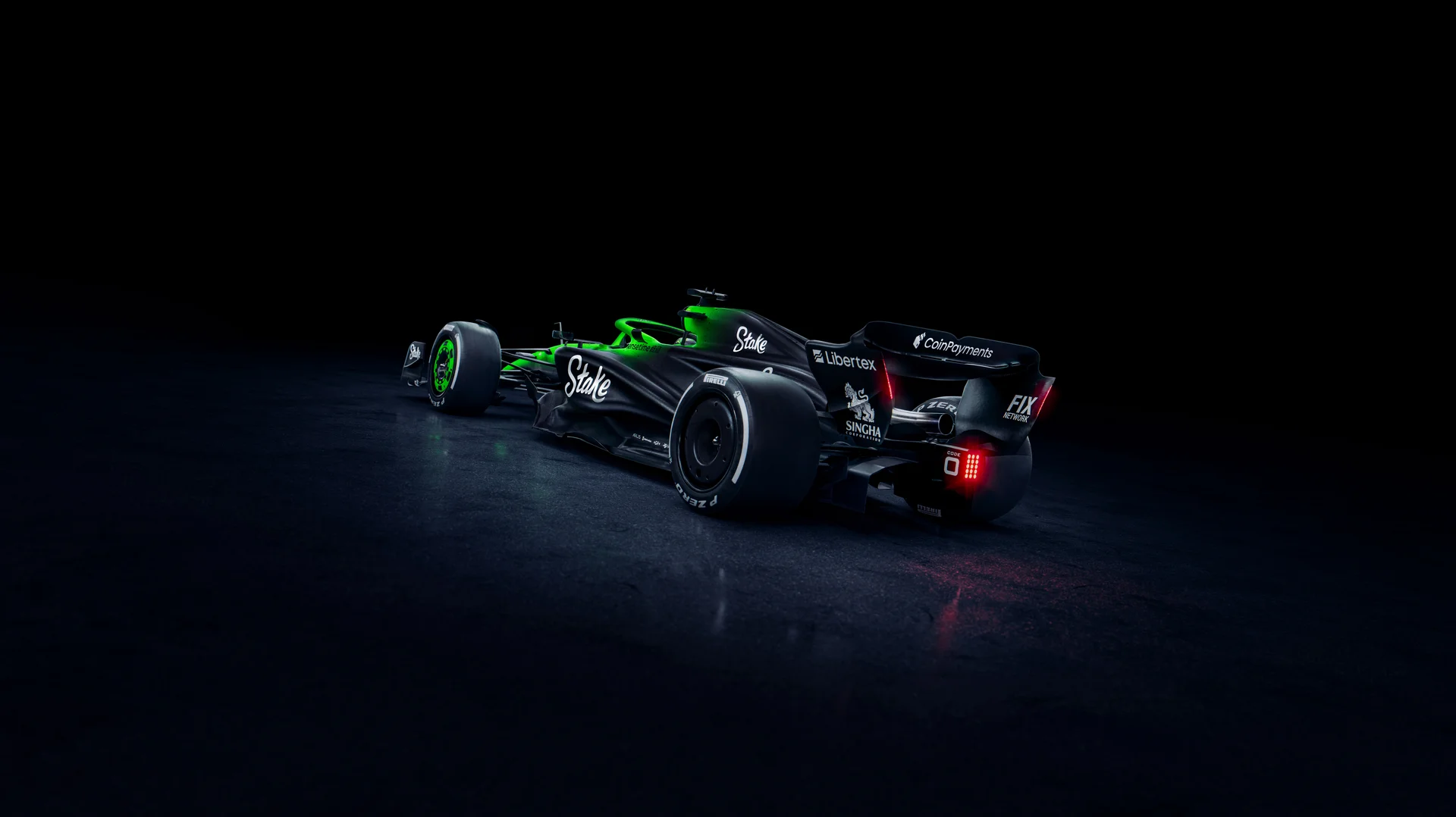

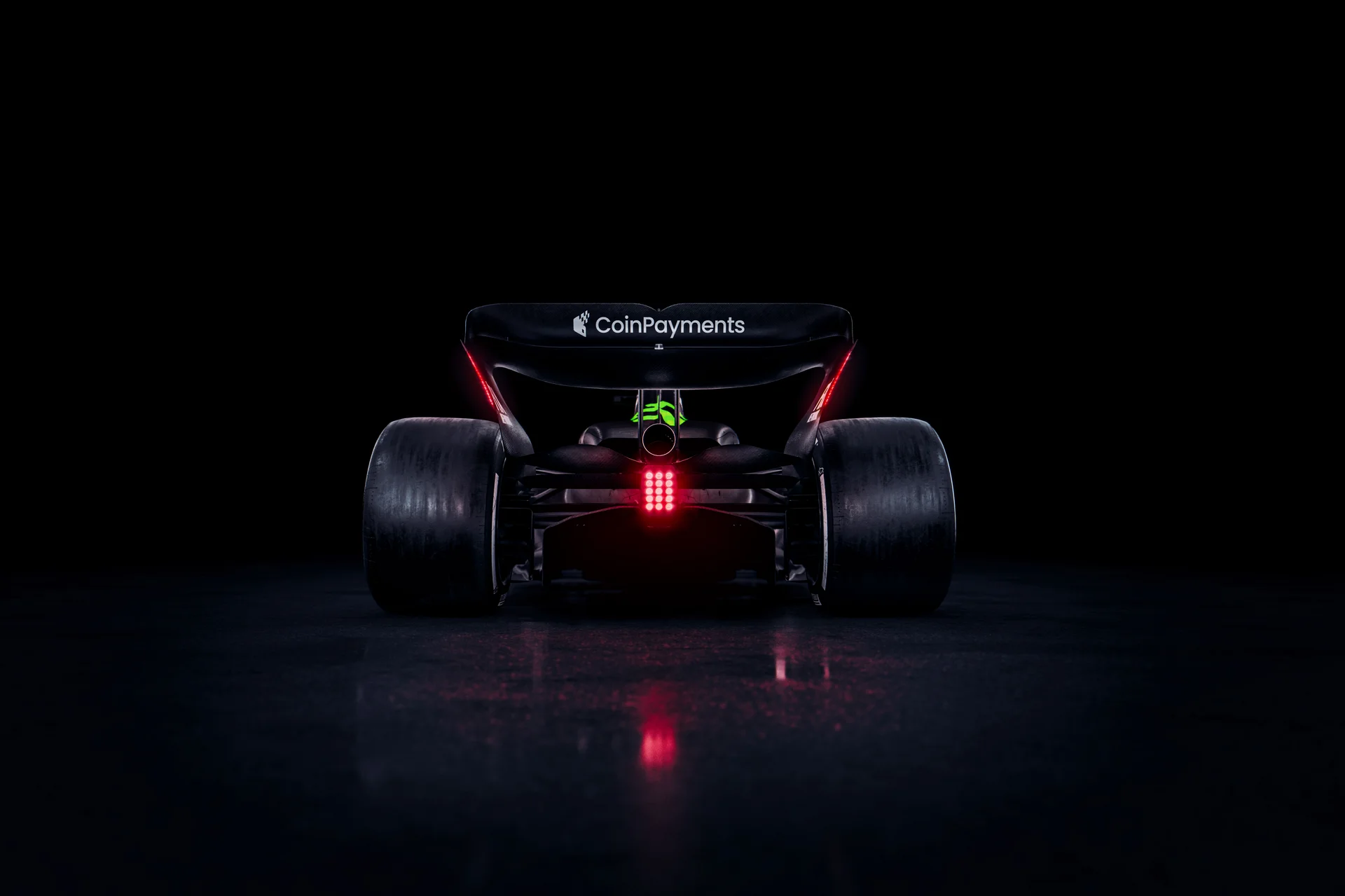

Meet the C44

The Stake F1 Team KICK Sauber C44, to give its full name, is the team's challenger for 2024. It is virtually a completely new car, with just a few carry-over areas at the rear of the car compared with its predecessor, the C43. The car, the fruit of months of design, analysis and production work, is an ambitious undertaking, with several new elements that are the result of bold choices by the technical team.

A BOLD NEW DIRECTION

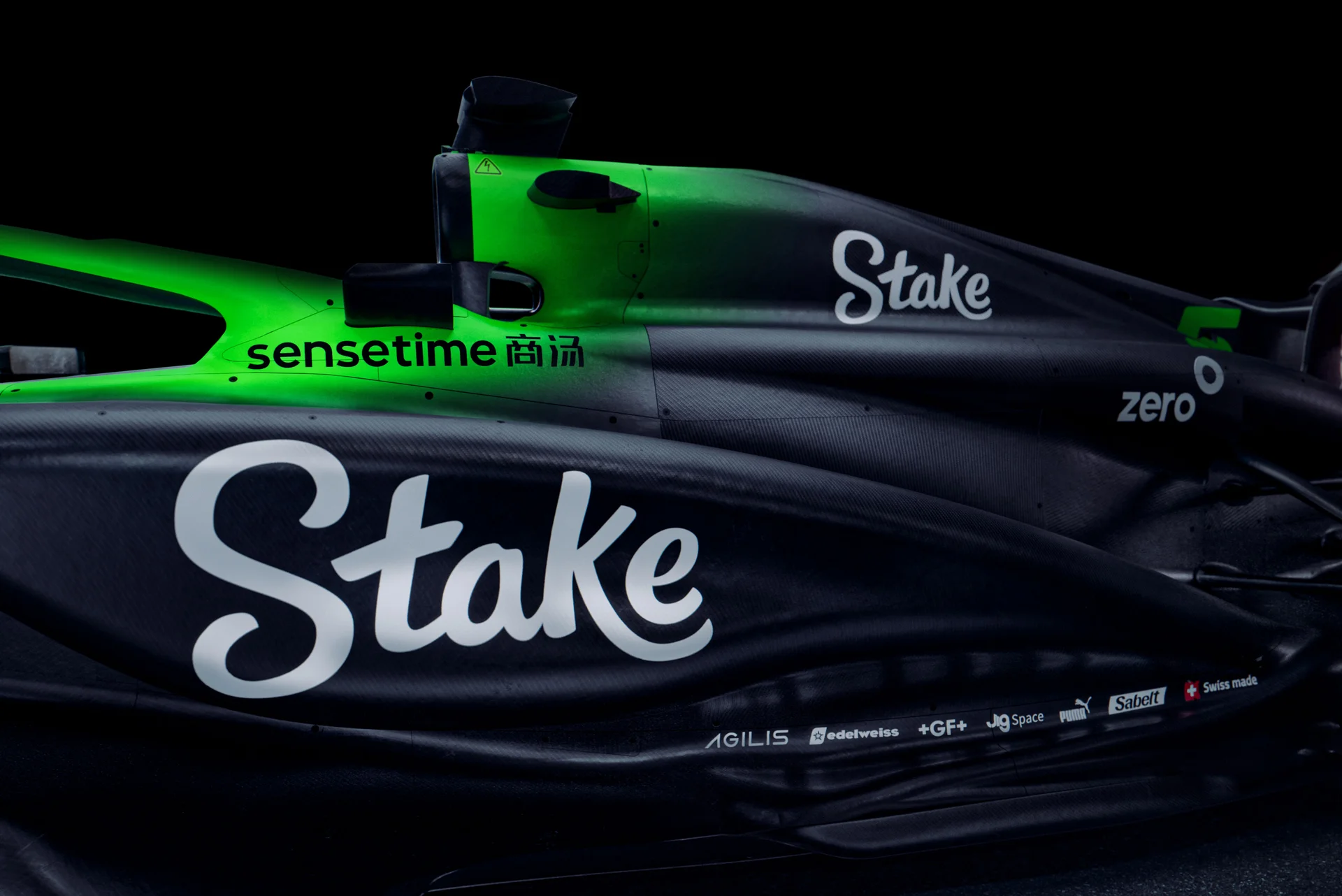

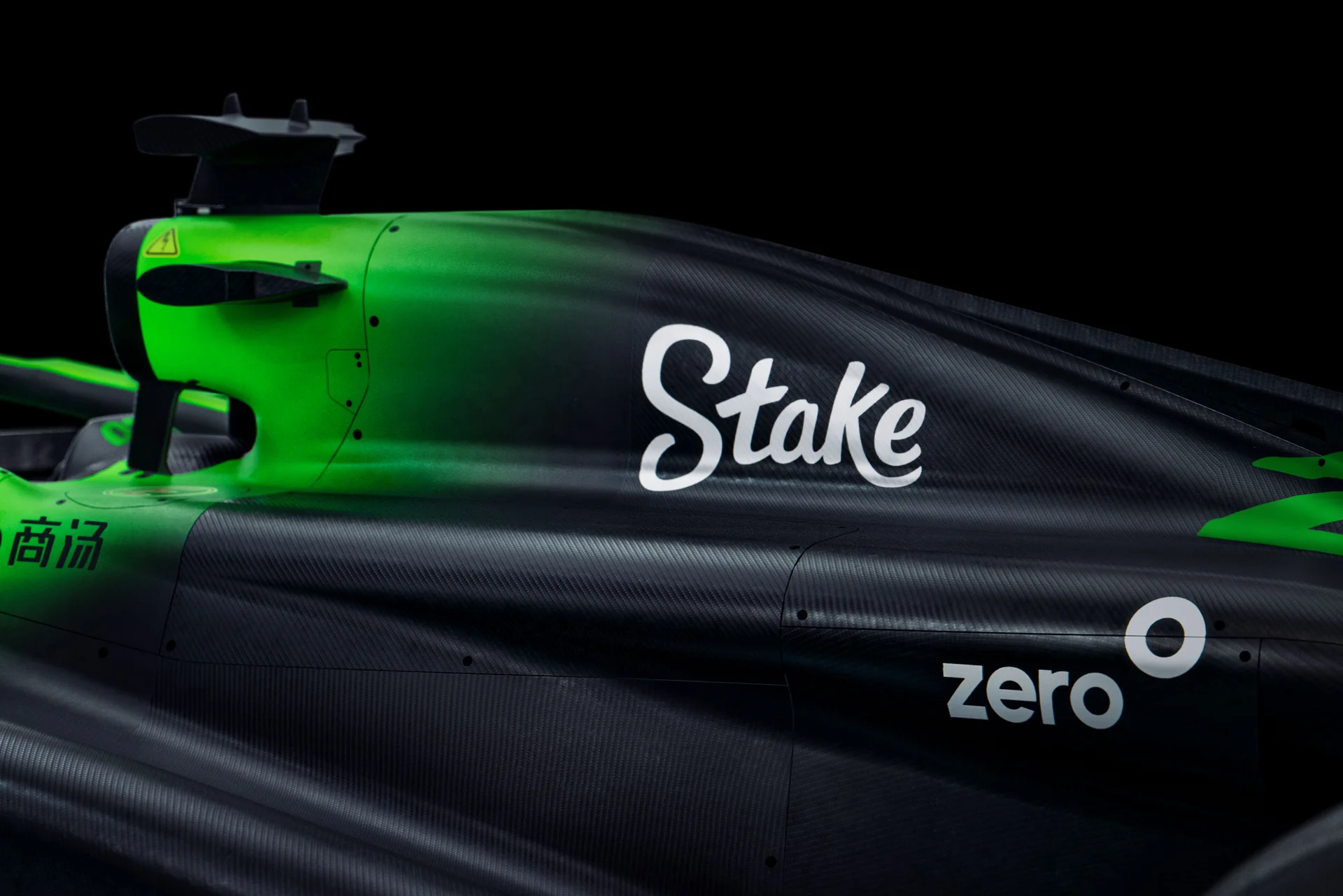

The 2024 car features a redesigned front suspension, which went from push-rod to pull-rod in a bid to improve the car's aerodynamic efficiency. This is complemented by an aggressive approach to bodywork and the floor, crucial areas to generate performance, and several new upgrades underneath the car's skin (and away from our competitors' eyes).

GENERAL SPECIFICATIONS

0mm
general width
0mm
overall height
0kg
overall weight

DEVELOPMENT NEVER STOPS

The team's bid to improve the C44 never stops. An ambitious investment in the team's capabilities means the technical department was able to plan a busy schedule of upgrades for the car. In a world of fine margins and incremental gains, this approach will allow the team to remain competitive throughout the season - ready to unleash the power of the C44.

Stake F1 Team KICK Sauber C44 – Technical Specifications

CAR SPECIFICATIONS

Survival cell

Stake F1 Team KICK Sauber moulded carbon fibre composite structure incorporating ATL fuel cell bladder

Safety Structures

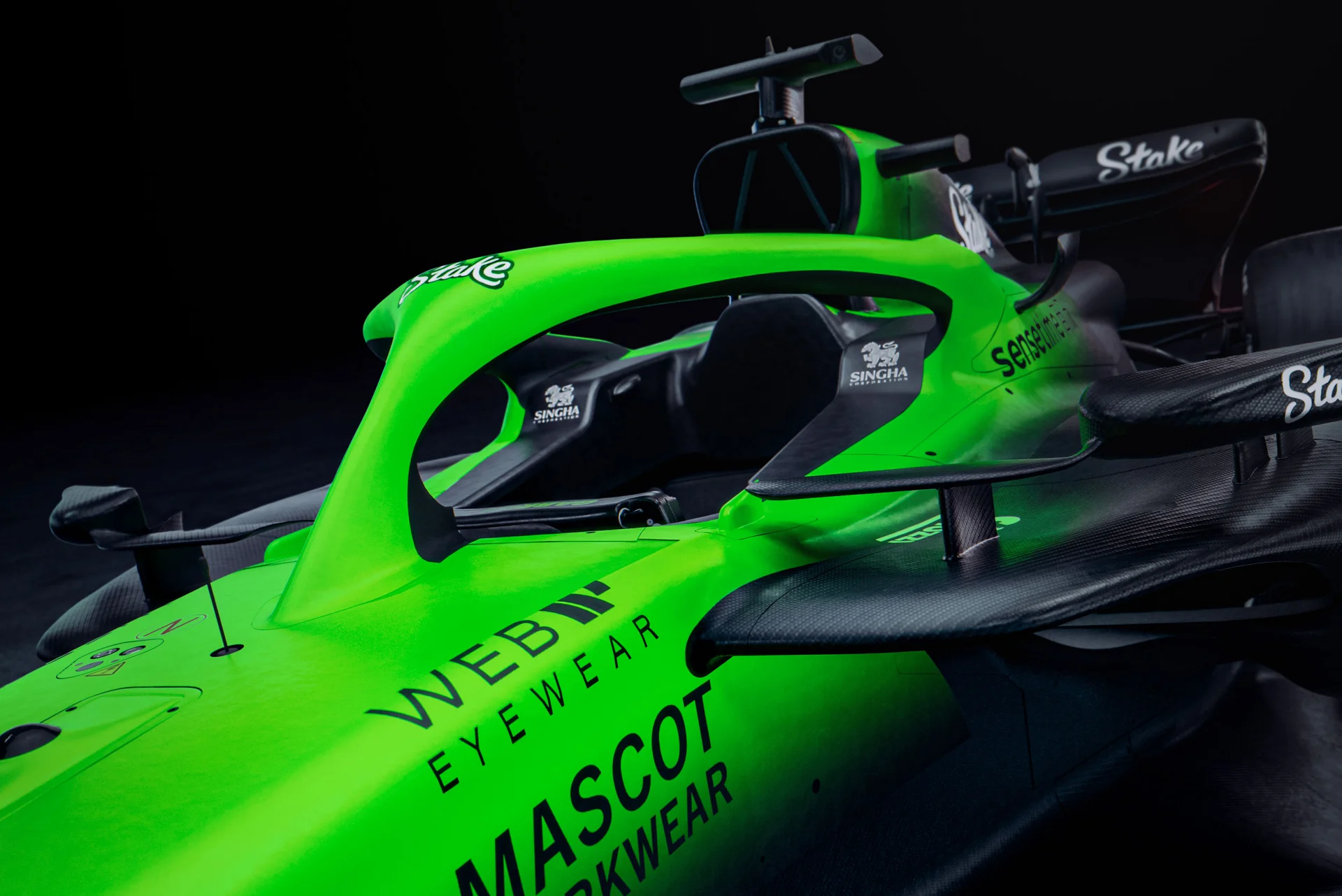

Intrusion protected monocoque, impact absorbing front, side and rear structures, principal roll structure (roll hoop), secondary roll structure (halo)

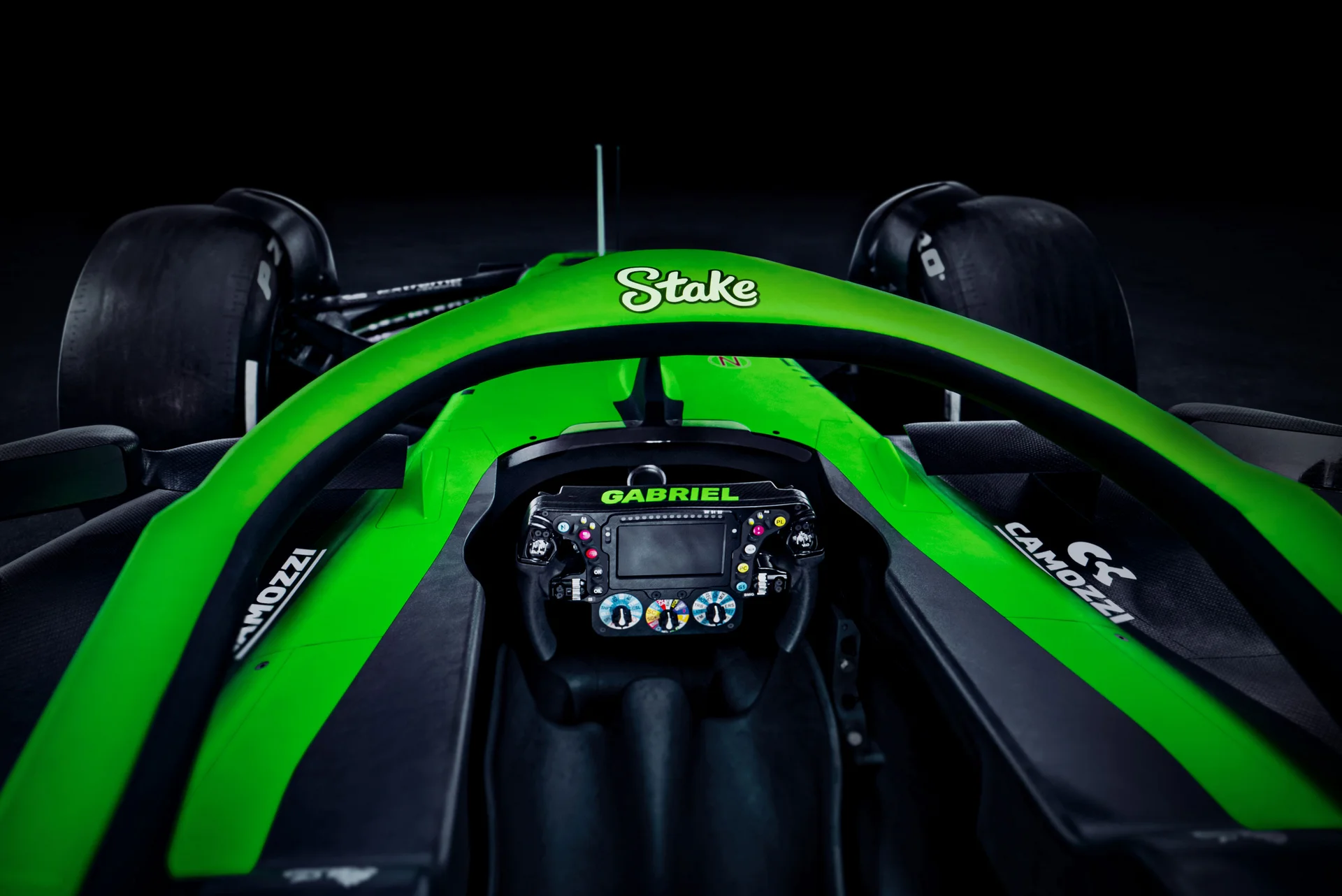

Cockpit

Bespoke carbon fibre composite seat, Sabelt 6-point safety harness

Front Suspension

Carbon fibre double wishbone, pull-rod activated springs, rockers and Öhlins damper units

Rear Suspension

Carbon fibre double wishbone, push-rod activated springs, rockers and Öhlins damper units

Brake System

Ventilated carbon Brembo brake discs and pads with an electronically controlled hydraulic system for the rear brakes (Brake by Wire). Brembo monobloc calipers in nickel-plated aluminium alloy. Brembo tandem brake master cylinder

Steering System

Power-assisted rack and pinion, customised carbon fibre steering wheel

Electronics

FIA approved electrical system including a standardised FIA ECU

Power Unit

Ferrari hybrid turbo V6

Energy Recovery System

Ferrari hybrid energy recovery system via electrical Motor Generator Units

Gearbox

Stake F1 Team KICK Sauber carbon fibre maincase with Ferrari cassette containing eight forward speeds and one reverse

Gear Selection

Sequential, semi-automatic

Clutch

Carbon composite

Wheels

18” BBS

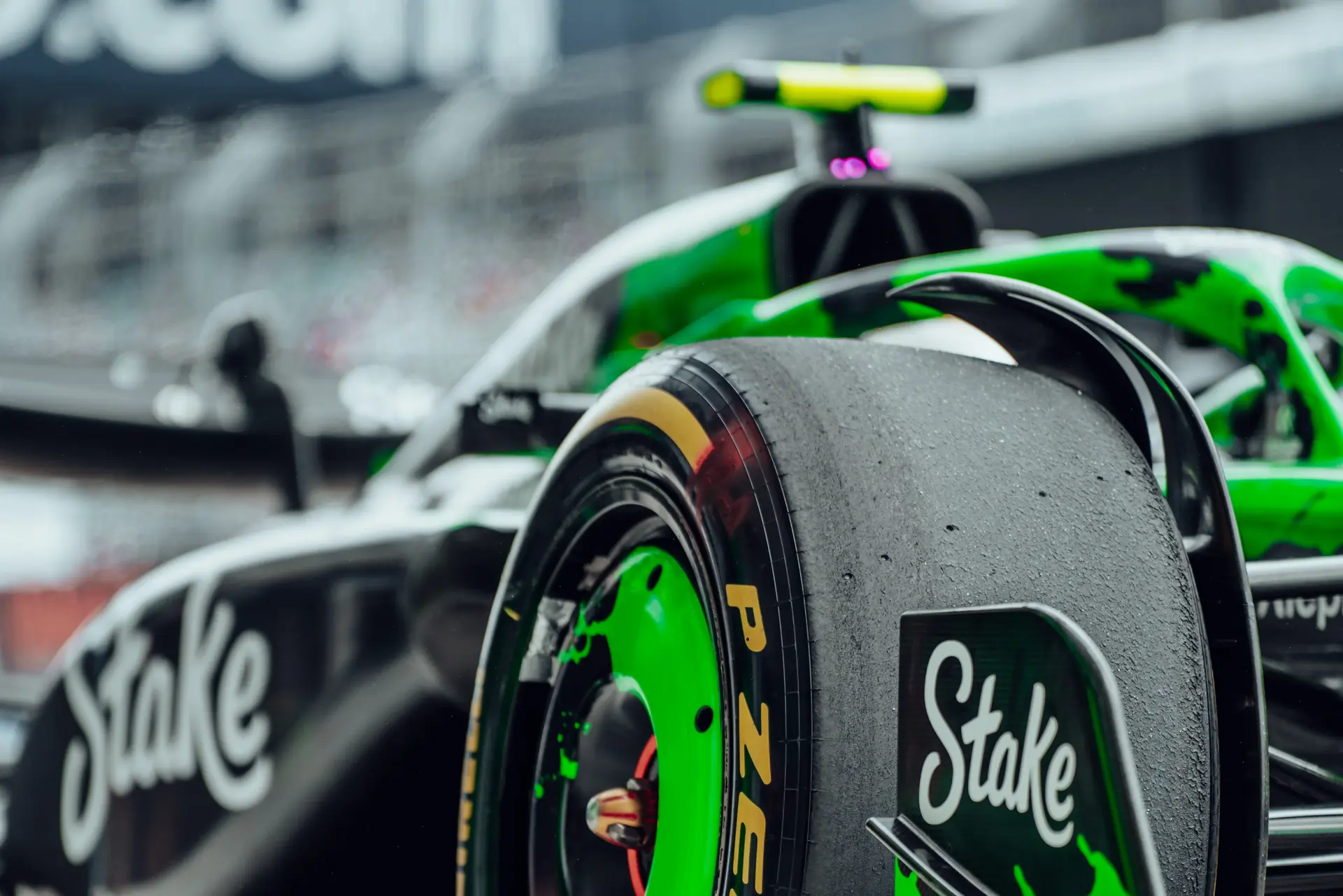

Tyres

Pirelli
